Size
|
|
1200mm
|
1220mm
|
2400mm
|
2440mm
|
|
Length
|
|
|
√
|
√
|
|
Width
|
√
|
√
|
|
|
|
Thickness
|
7/7.5/8.5/9/9.5/12
|
7/7.5/8.5/9/9.5/12
|
7/7.5/8.5/9/9.5/12
|
7/7.5/8.5/9/9.5/12
|
Color
Specification
Techn
TEST ITEM
|
TEST METHOD
|
TEST CONDITION
|
TEST RESULT
|
Flexural strength
|
ASTM C473-10
Clause 14
|
Specimen: 406x305mm,total: 12pcs
Loading speed: 5 N/s
Support span: 356mm
|
Parallel
face up
|
379N
|
Parallel
face down
|
480N
|
Across
face up
|
383N
|
Across
face down
|
473N
|
|
Humidified defection
|
ASTM C473-10
Clause 14
|
Specimen: 610*305mm, 6pcs
Testing condition: (29.5±8.5)℃ (50±2)﹪ RH
Time: 48h
Support Span: 584mm
|
Average defection: 2.08mm
|
Nail pull resistance
|
ASTM C473-10
Clause 9 method A
|
Specimen: 152x152mm, total: 15pcs
Loading Speed: 10N/s
Nail Diameter: nail shank 2.5mm, nail head 6.3mm
|
Average value：298N
|
|
End squareness
|
ASTM C473-10
Clause 15
|
Specimen: 1200x600mm, 1pcs
|
Distance out of square: 2.0mm
|
|
Thickness
|
ASTM C473-10
Clause 16
|
Specimen: 1200x600mm, 1pcs
Measure the thickness excluding the tapered, beveled, or recessed edges.
|
Average value: 11.014mm
|
Length and width
|
ASTM C473-10
Clause 18-19
|
Specimen: 1200x600mm, 1pcs
|
Average value:
Length: 1200mm Width: 600mm
|
Water vapor transmission
|
ASTM
E96/E96M-10
Method A
|
Thickness: 12.1mm
Condition: (23±2)℃,(50±5)﹪RH
|
11.2g/(m2.h),
|
Strontium Sulfide(SrS)
|
Qualitative Analysisof
SrS crystalline substance
by XRD and element
analysis of EDXRF.
|
MDL: 0.5﹪
|
Negative
|
LOADING CAPACITY(loading port:Qingdao)
|
|
|
|
|
|
|
|
|
|
|
SIZE(MM)
|
THICKNESS
|
PACKING
|
LOADING QUANTITY(20GP)
|
|
1200X2400mm
|
7 mm
|
2PCS/CTN
|
600 CTNS 1200 PCS
|
|
1200X2400mm
|
7.5mm
|
2PCS/CTN
|
580 CTNS 1160 PCS
|
|
1200X2400mm
|
8mm
|
2PCS/CTN
|
550 CTNS 1100 PCS
|
|
1200X2400mm
|
9mm
|
2PCS/CTN
|
490 CTNS 980 PCS
|
|
1200X2400mm
|
9.5mm
|
2PCS/CTN
|
475 CTNS 950 PCS
|
|
1200X2400mm
|
12mm
|
2PCS/CTN
|
365 CTNS 730 PCS
|
|
|
|
|
|
|
SIZE(MM)
|
THICKNESS
|
PACKING
|
LOADING QUANTITY(20GP)
|
|
1200X2400mm
|
7 mm
|
2PCS/CTN
|
595 CTNS 1190 PCS
|
|
1200X2400mm
|
7.5mm
|
2PCS/CTN
|
575 CTNS 1150 PCS
|
|
1200X2400mm
|
8mm
|
2PCS/CTN
|
545 CTNS 1090 PCS
|
|
1200X2400mm
|
9mm
|
2PCS/CTN
|
475 CTNS 950 PCS
|
|
1200X2400mm
|
9.5mm
|
2PCS/CTN
|
460 CTNS 920 PCS
|
|
1200X2400mm
|
12mm
|
2PCS/CTN
|
360 CTNS 720 PCS
|

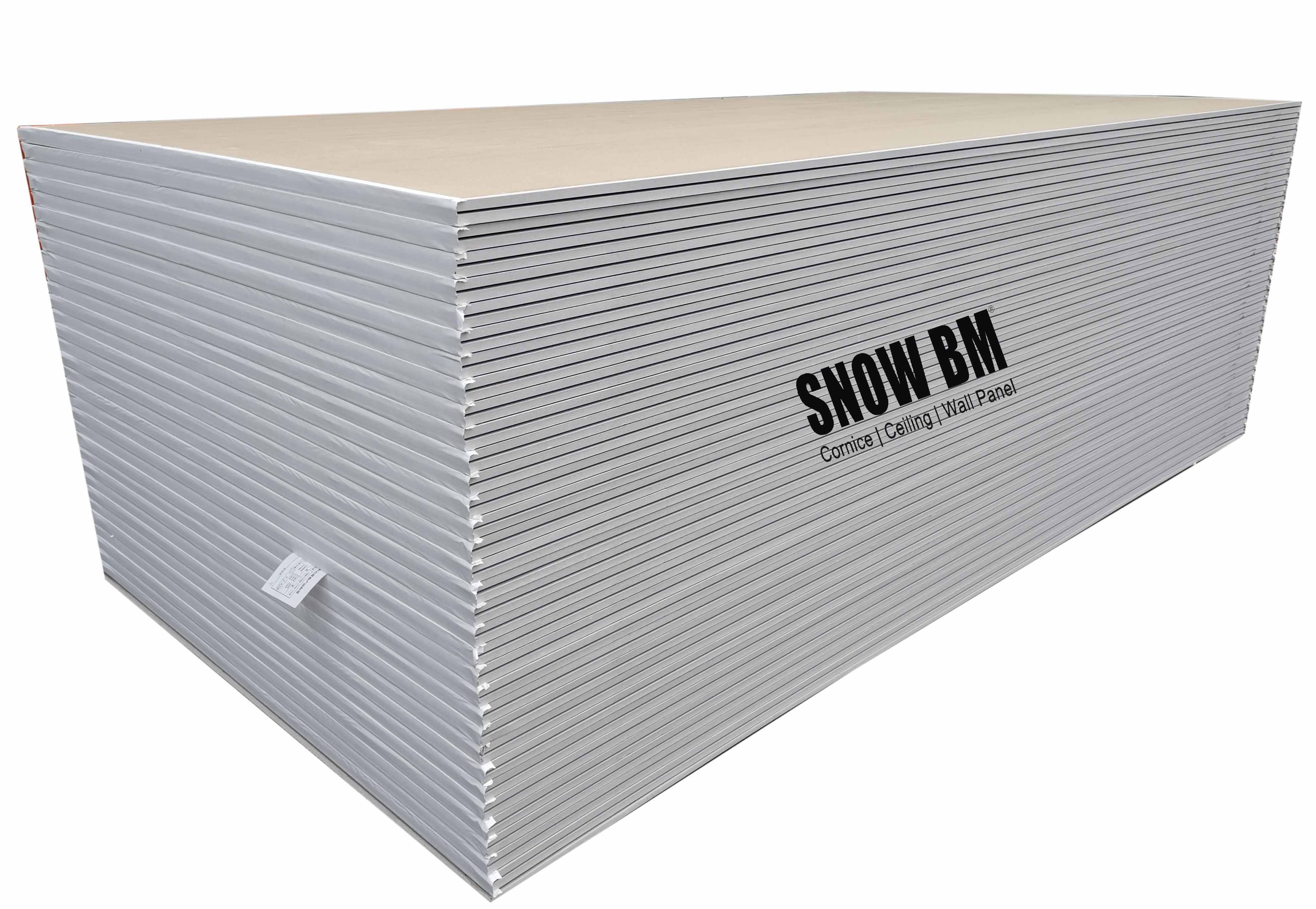

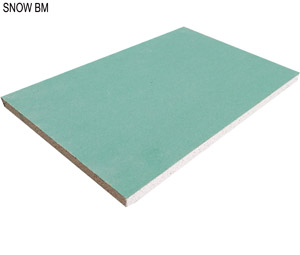

Applicable Place
Gypsum ceiling and wall panel with novel design and color, waterproof, moistureproof, easy installation, stable chemical properties, such as performance, is mainly used is mainly suitable for homes, offices, shops, hotels and meeting room industrial workshop etc.
